ibidi 趋化性实验 免疫荧光染色 粘撕式载玻片sticky-Slide Chemotaxis 3D

ibidi 趋化性实验 免疫荧光染色 粘撕式载玻片sticky-Slide Chemotaxis 3D相关产品
  • ibidi ···

产品简介

易必迪 ibidi 趋化性实验 免疫荧光染色 粘撕式载玻片/sticky-Slide Chemotaxis 3D/80328 10812



应用范围

A chemotaxis bottomless slide used in 2D and 3D applications with a self-adhesive underside designed to allow self-assemblage of the slide setup

Versatile – i.e., permits the mounting of a variety of bottom materials

Allows chemotaxis measurements to be taken in real-time

Provides stable gradients for long-term experiments

Applications:

Inserting materials or tissue into chemotaxis chambers

Keeping cell spheroids or tissue in a stable concentration gradient

Chemotaxis of fast or slow migrating cells on either a 2D surface or in 3D gels

Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides

产品特点

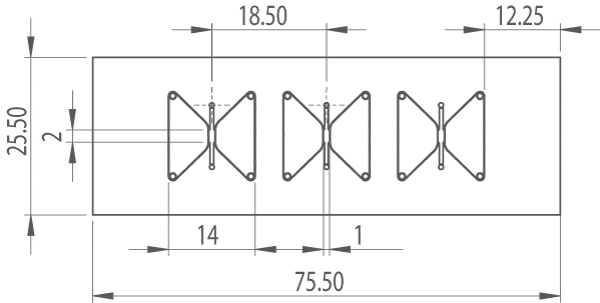

Specifications


Chemotaxis chambers on slide 3
Volume per chamber 120 µl
Observation area 2x1 mm²
Total height with plugs 12 mm
Volume chemoattractant 60 µl
Bottom none


趋化实验001

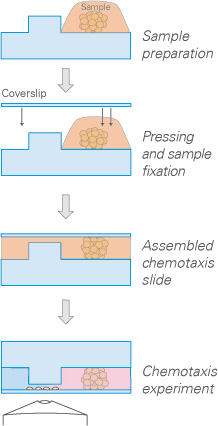

Example: Tissue Sample in sticky-Slide Chemotaxis 3D

趋化实验002

趋化实验003

产品参数

货号 产品名称 规格(个/盒)
80326 µ-Slide 3D细胞趋化载玻片,ibiTreat底部处理 10
80322 µ-Slide 3D细胞趋化载玻片,Collagen IV底部处理 10
80328 3D趋化可粘载玻片 10
货号 产品名称 规格(个/盒)
10812 可粘载玻片配套底片,玻璃底 100
10813 可粘载玻片配套底片,无包被 100
10814 可粘载玻片配套底片,ibiTreat底部处理 100


Technical Features:

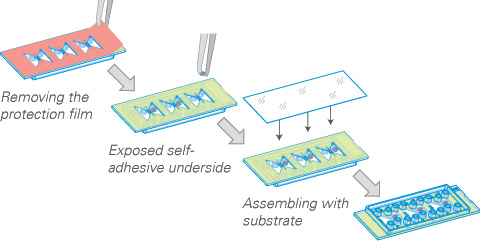

Bottomless slide

Self-adhesive underside

Biocompatible adhesive that has been cell culture tested

Adheres to all flat surfaces, even wet surfaces

Suitable coverslips available

Specifications identical to those of the µ-Slide Chemotaxis 3D, except that it has no bottom

基本配置
